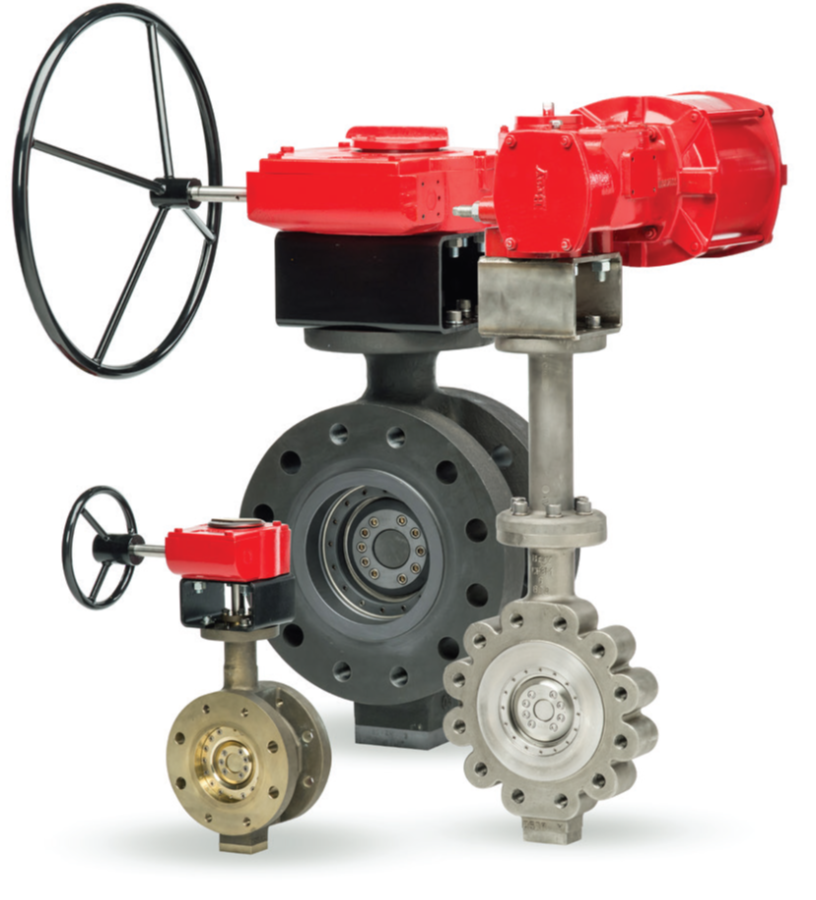

BRAY TRILOK Triple Offset Butterfly Valve
Operating Pressure: Vacuum / 10–102 bar – ASME Class 150 / 300 / 600
Application Area: Shut-off and control of critical or severe fluids
Operating Temperature: -196°C to +450°C
Nominal Size: DN 80 – DN 1200 (ASME 3″ – 48″)
Body/Disc Materials:
Cast steel / Stainless steel
Body Seat Material:
SS316 stainless steel, stellite overlay
Disc Seal Material:
Laminated SS318 stainless steel / Graphite-coated steel
Certifications & Features:
ATEX compliant
Firesafe construction
Connections: Flanged
Body Design: One-piece or two-piece body – Wafer / Lug / Double-flanged
Actuation Options: Manual / Pneumatic / Electric
