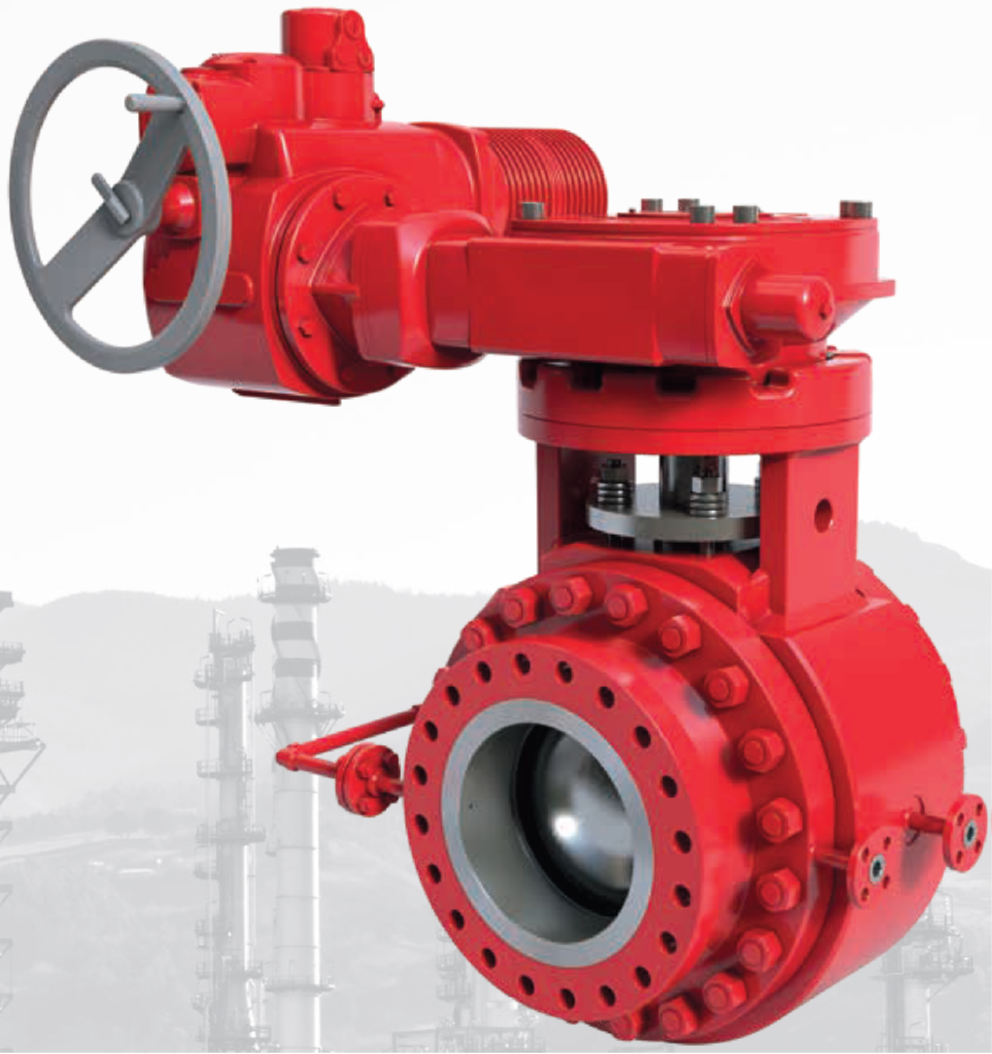

BRAY Ball Valves Type M1 – For Severe Service Applications
Operating Pressure:
10–744 bar – ASME Class 150 / 300 / 600 / 900 / 1500 / 2500 / 4500
Application Area:
Shut-off valve for severe service fluids
Operating Temperature:
-29°C to +816°C
Nominal Size:
DN 15 – DN 900 / ASME ½″ – 36″
Body Materials:
Cast steel / Special stainless steels / Titanium, etc.
Ball Materials:
Stainless steel 316 / 410 / Inconel / Titanium / Duplex, etc.
Seat Materials:
Stainless steel 316 / 410 / Inconel / Titanium / Duplex, etc.
Certifications:
ATEX / FIRESAFE
Connections:
Flanged
Body Design:
Flanged body
Actuation:
Manual / Pneumatic / Electric
The STRING team offers specialized after-sales consulting
STRING, founded in 2000, is a Romanian company specializing in industrial fluid control solutions. We are the exclusive representative in Romania and Moldova for leading brands such as GEMÜ, BERNARD CONTROLS DEUFRA, WEY SISTAG, BRAY, STRAUB, and DOCKWEILER, and we offer ISO-, SRAC-, and IQNet-certified products and services.
