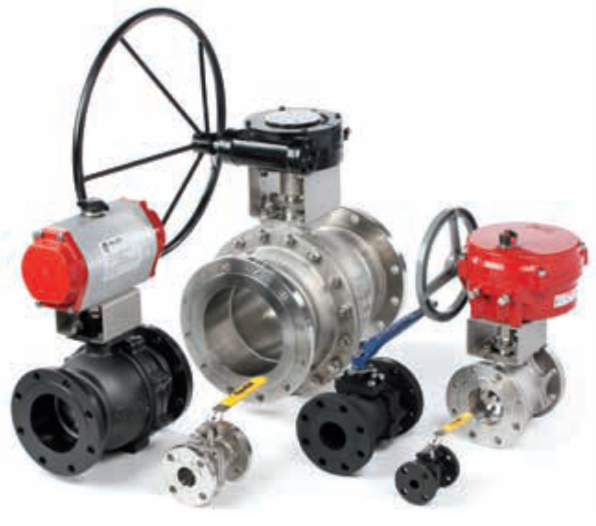

BRAY Ball Valves – Type F15 / F30 ASME
Operating Pressure:
F15: ASME Class 150
F30: ASME Class 300
Also available: PN 10 – PN 40
Application Area:
Shut-off and control valve for industrial fluid processes
Operating Temperature:
-46°C to +343°C
Nominal Size:
DN 12 – DN 300 / ASME ½″ – 12″
Body Materials:
Cast steel WCB / Stainless steel CF8M / Special alloys
Ball Material:
Stainless steel CF8M
Seat Materials:
TFM 1600 / Tek-Fil / PEEK / RPTFE / UHMWPE / Metal
Certifications:
ATEX / FIRESAFE
Connections:
Flanged ends – ASME Class 150 / Class 300 / PN10–PN40 (EN 1092-1)
Body Style:
Flanged body
Options:
Balls with 90°, 60°, etc. ports for control applications
Actuation:
Manual / Pneumatic / Electric
