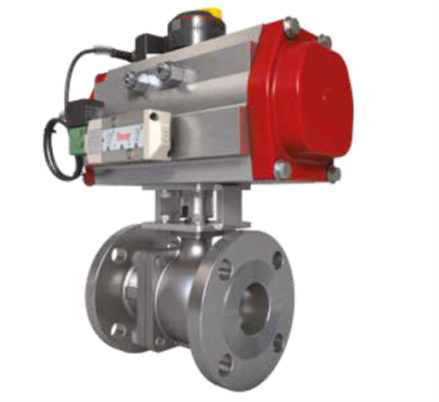

BRAY Ball Valves – Type F15 EN
Operating Pressure:
PN 10 – PN 40
Application Area:
Industrial valve for shut-off and flow control of process fluids
Operating Temperature:
-46°C to +343°C
Nominal Size:
DN 15 – DN 300
Body Materials:
Cast steel 1.0619 / Stainless steel 1.4408
Ball Material:
Stainless steel 1.4401
Seat Materials:
TFM 1600 / Tek-Fil / PEEK / RPTFE / UHMWPE / Metal
Certifications:
ATEX / FIRESAFE construction
Connections:
Flanged ends PN10 – PN40, EN 1092-1
Body Style:
Flanged body
Options:
Balls with 90°, 60°, etc. port for control applications
Actuation:
Manual / Pneumatic / Electric
