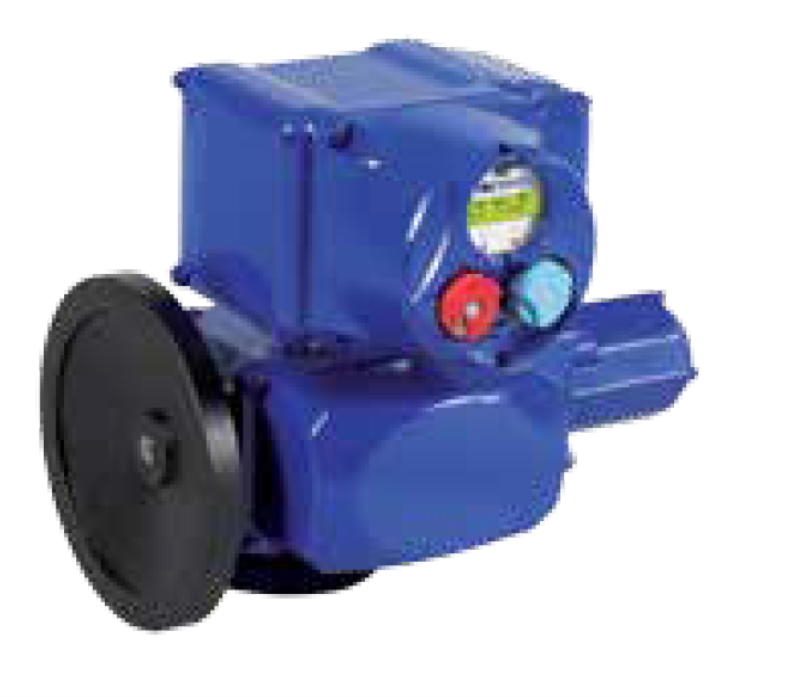

BERNARD Electric Actuator – Type SQ
Operation: ON/OFF or modulating control
Application area: Industrial automation applications
ON/OFF version includes:
2 end position limit switches (pre-set, one per direction)
2 intermediate position limit switches (field-adjustable)
2 torque limiters (one per direction)
Manual override with handwheel
Anti-condensation heating resistor
Additional ON/OFF – Logic version features:
Local/remote command selection via buttons and status/alert display
Additional modulating control version features:
Built-in positioner with 4–20 mA command and feedback
Local/remote command selection via buttons
Actuation: Electric, 220V or 380V AC, 50Hz
Torque range: 40 Nm – 10,000 Nm
